• Tow/haul mode selector, instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Body, standard
• Door, swing-out passenger-side, 60/40 split
• Wheel trim, chrome center cap
• Tire, spare LT245/75R16 all-season, blackwall
• Chrome Appearance Package
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Grille, chrome (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

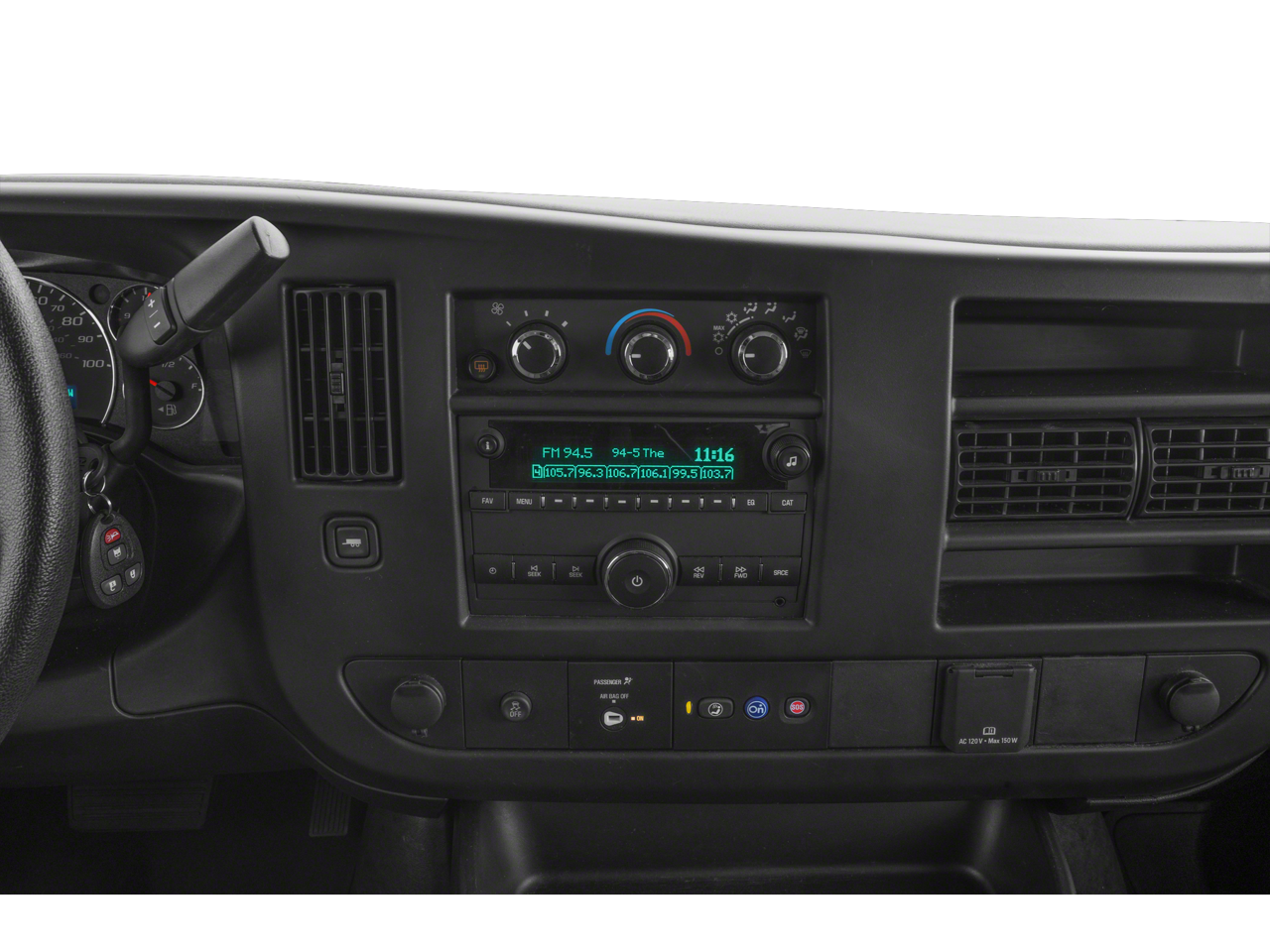

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio.)
• Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)

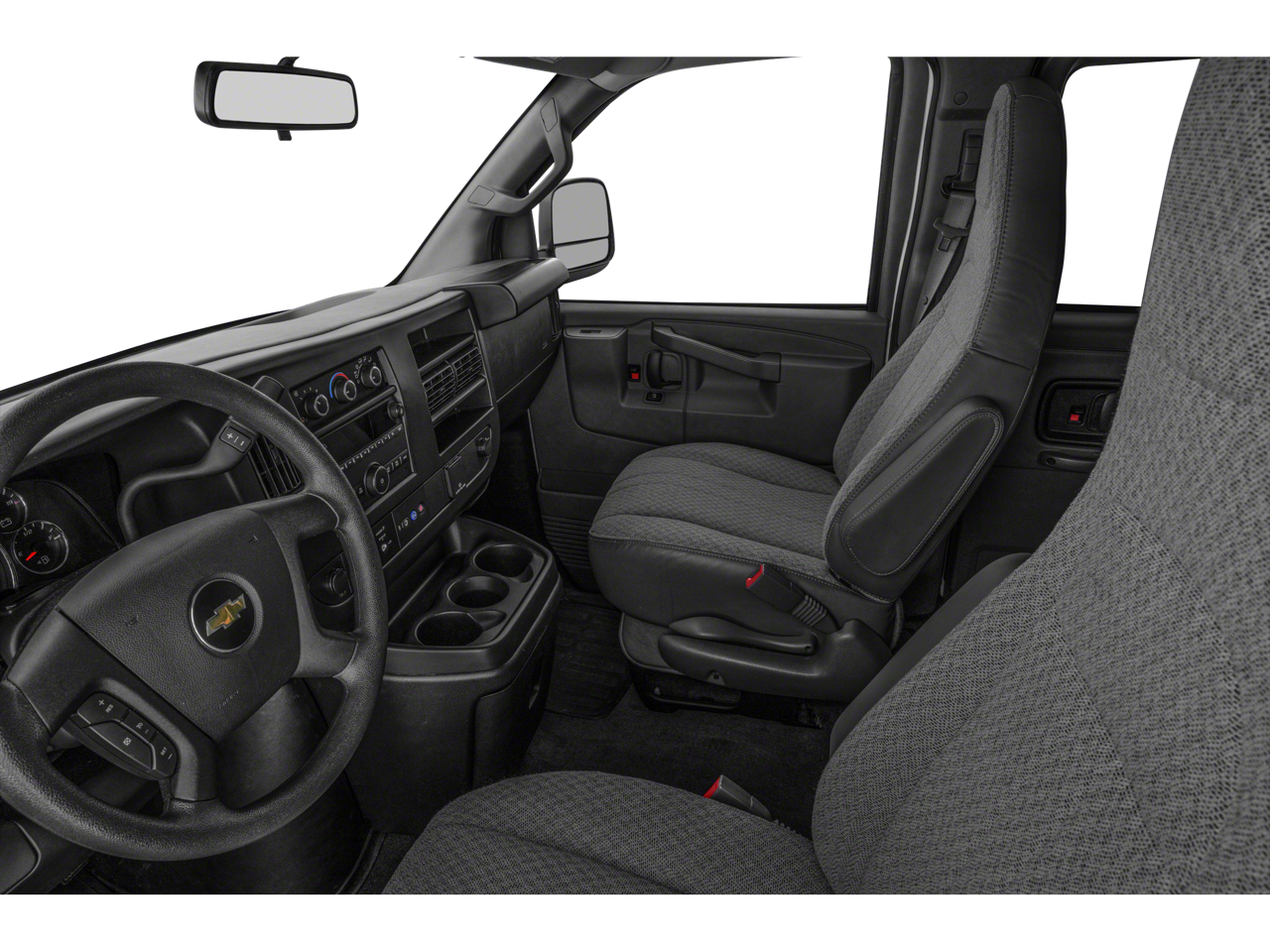

• Seats, front bucket with Custom Cloth trim head restraints and inboard armrests (Requires (93G) interior trim. Includes (BA3) console with swing-out storage bin. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

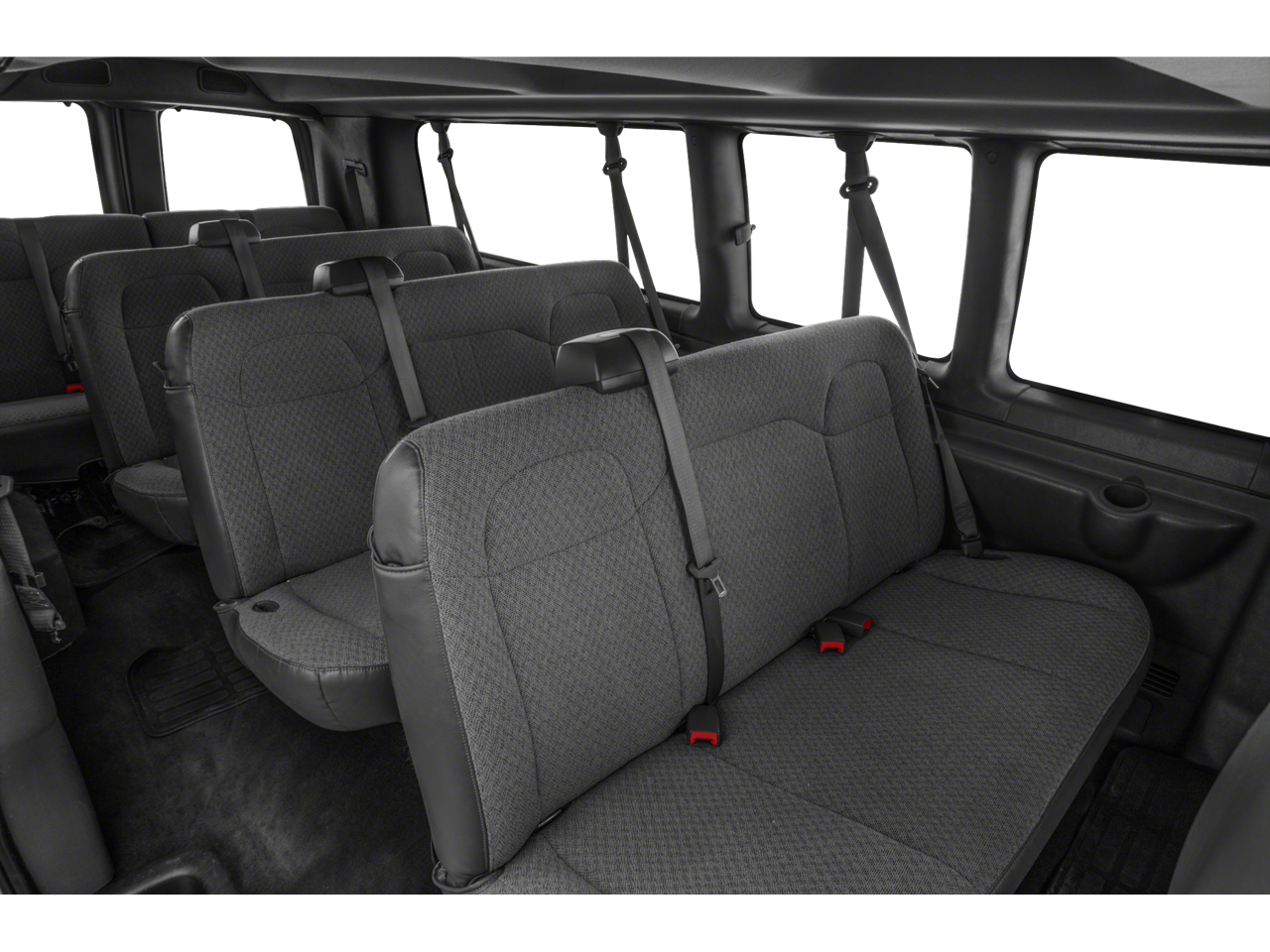

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration
• Console, deluxe with swing-out storage bin
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats (Not available with (Y3H) Paratransit Package.)
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Steering column, Tilt-Wheel
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center
• Windows, power (Included with (ZQ2) Power Convenience Package.)
• Door locks, power with lock-out protection
• Remote Keyless Entry with 2 transmitters and remote panic button
• Cruise control
• Theft Alarm Notification requires paid plan, working electrical system, cell reception, GPS signal, armed GM factory-installed theft-deterrent system, contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations (Included and only available with (ATG) Remote Keyless Entry. Requires (UE1) OnStar.)
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows
• Mirror, inside rearview, with Rear Vision Camera display
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handles, driver and right-front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Door beams, steel-side
• Daytime Running Lamps
• Rear Vision Camera (Display is included with (DRJ) Inside rearview mirror.)
• Airbags, frontal, front driver and right front passenger includes passenger-side airbag deactivation switch (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain provides coverage for outboard seating positions for first 3-rows only. Enhanced-technology glass is provided for fourth row with (ZX5) 12-passenger seating and fourth and fifth rows with (ZP3) 15-passenger seating (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Forward Collision Alert
• Lane Departure Warning
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Child seat anchors all three passenger rear seats have two anchors for outboard seating positions and tethers for two seating positions. See the Owner's Manual for more information
• Tire Pressure Monitoring System (does not apply to spare tire)

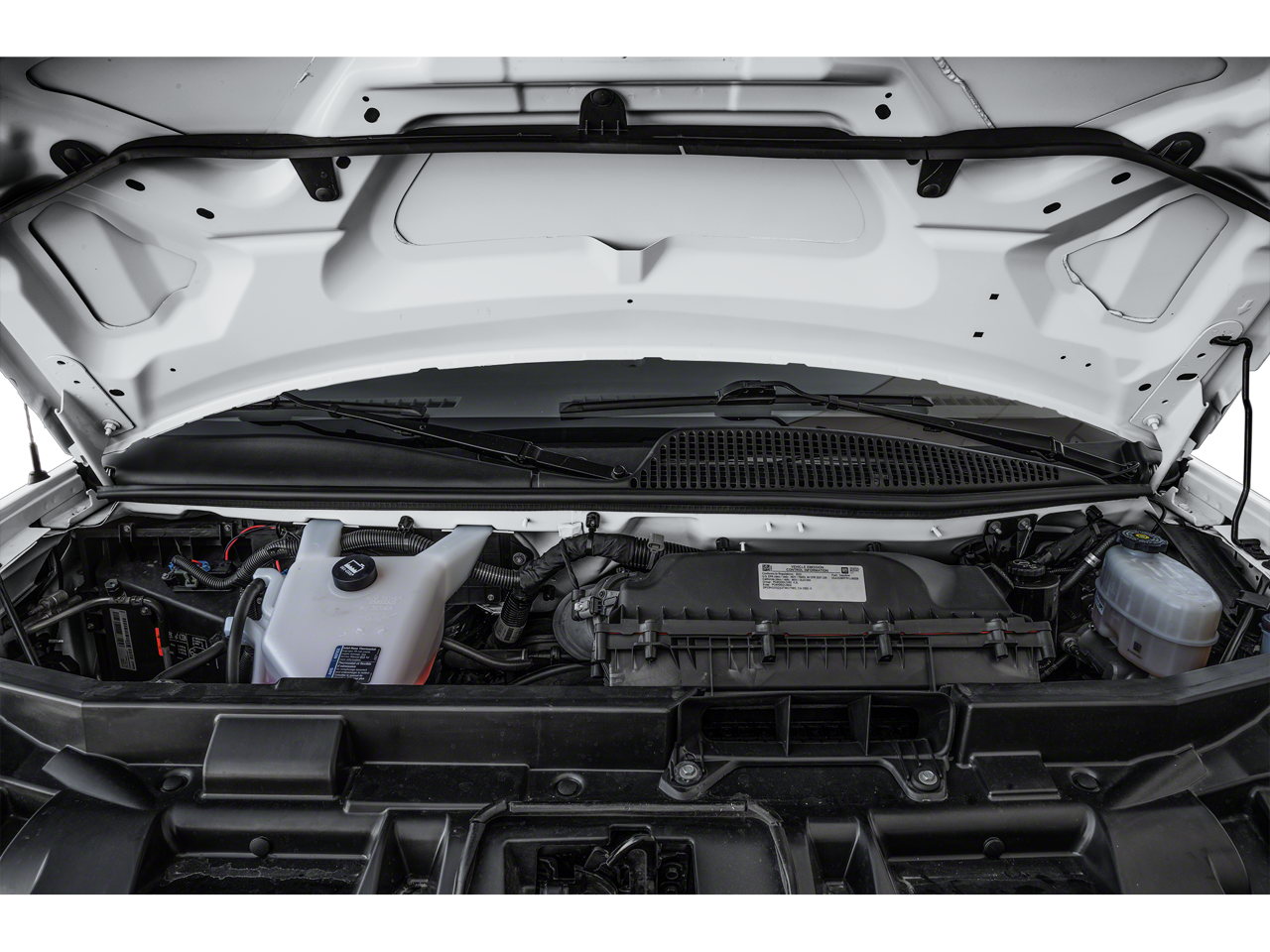

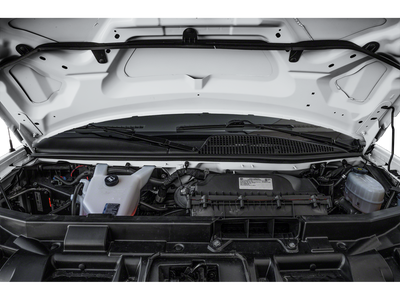

ENGINE, 4.3L V6 WITH DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction (276 hp [206 kW] @ 5200 rpm
• 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• GVWR 9600 LBS. (4354 KG) (STD)
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• ENGINE 4.3L V6 WITH DIRECT INJECTION and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• DEFOGGER REAR-WINDOW ELECTRIC
• SEAT ADJUSTER DRIVER 6-WAY POWER
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL
• REAR PARK ASSIST
• MEDIUM PEWTER CUSTOM CLOTH
• DOOR SLIDING PASSENGER-SIDE
• SEATING 15-PASSENGER (2-3-3-3-4 SEATING CONFIGURATION) 4-passenger seat is a 50/50 split 2-piece configuration
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin. (STD)
• PAINT SOLID (STD)
• Cruise Control
• Adjustable Steering Wheel
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Telematics
• WiFi Hotspot
• Requires Subscription
• Cloth Seats
• Bucket Seats
• 3rd Row Seat
• Floor Mats
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Trip Computer
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Security System
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• A/C
• Rear A/C
• Back-Up Camera
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Back-Up Camera
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Front Collision Warning
• Lane Departure Warning
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-Out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3189
• Curb Weight - Rear (lbs): 2984
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 630
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-Frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 155.1
• Length, Overall (in): 243.95
• Width, Max w/o mirrors (in): 79.25
• Height, Overall (in): 84.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.13
• Ground to Top of Load Floor (in): 32.2
• Ground Clearance, Front (in): 9.45
• Ground Clearance, Rear (in): 8.6
• Rear Door Opening Height (in): 46
• Rear Door Opening Width (in): 53.42
• Side Door Opening Height (in): 46.7
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): 27.25
• Step Up Height - Side (in): 27.85
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.6
• Cargo Area Length @ Floor to Seat 1 (in): 146.05
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 255.5
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Second Head Room (in): 38.42
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.62
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.58
• Third Shoulder Room (in): 65.75
• Third Hip Room (in): 63.25
• Fourth Head Room (in): 38.3
• Fourth Leg Room (in): 36.58
• Fourth Shoulder Room (in): 69.1
• Fourth Hip Room (in): 65.65
• Summary

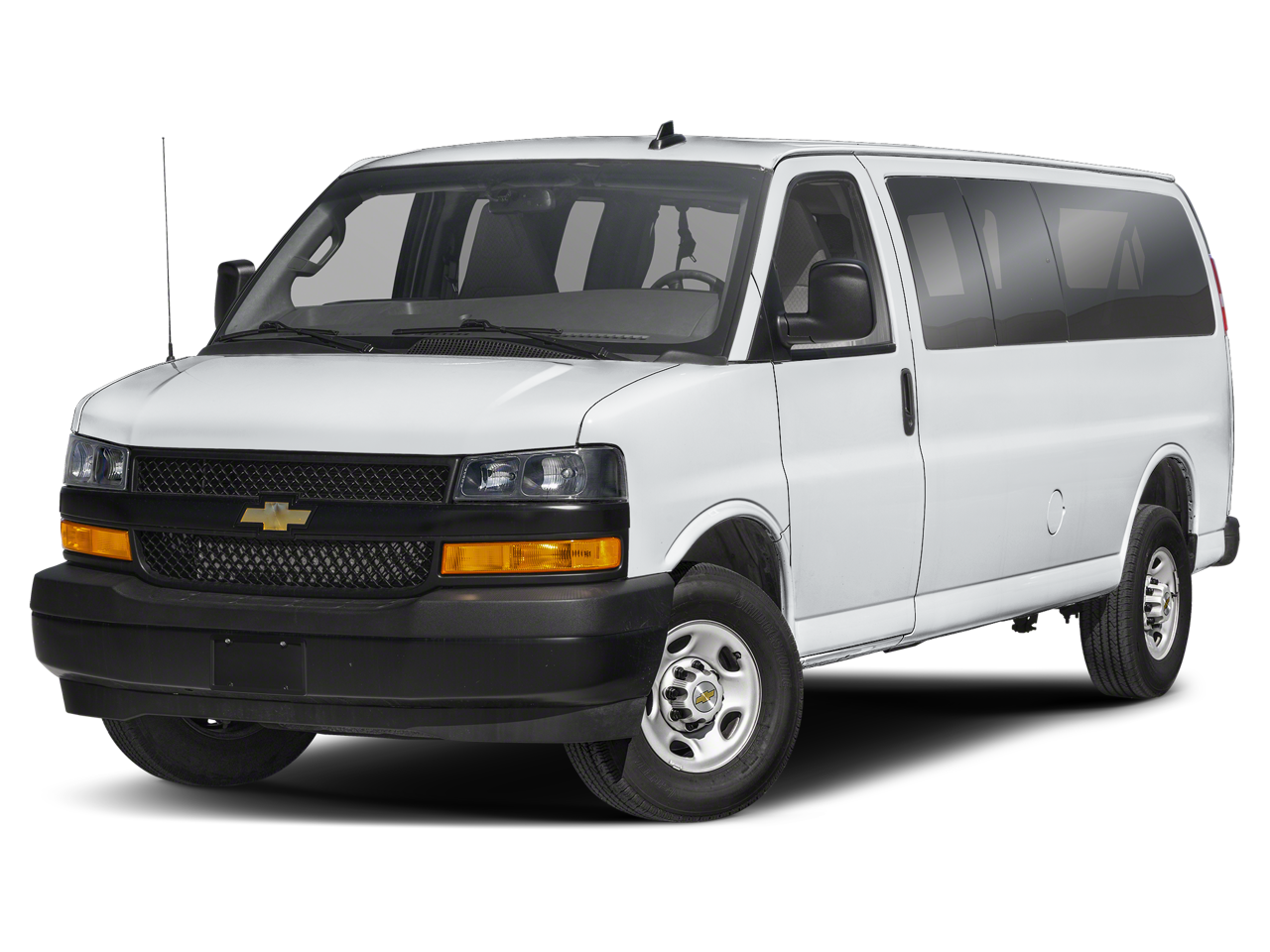

• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
