• Body, standard
• Rear wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 105 amps
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle
• Door, swing-out passenger-side, 60/40 split
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

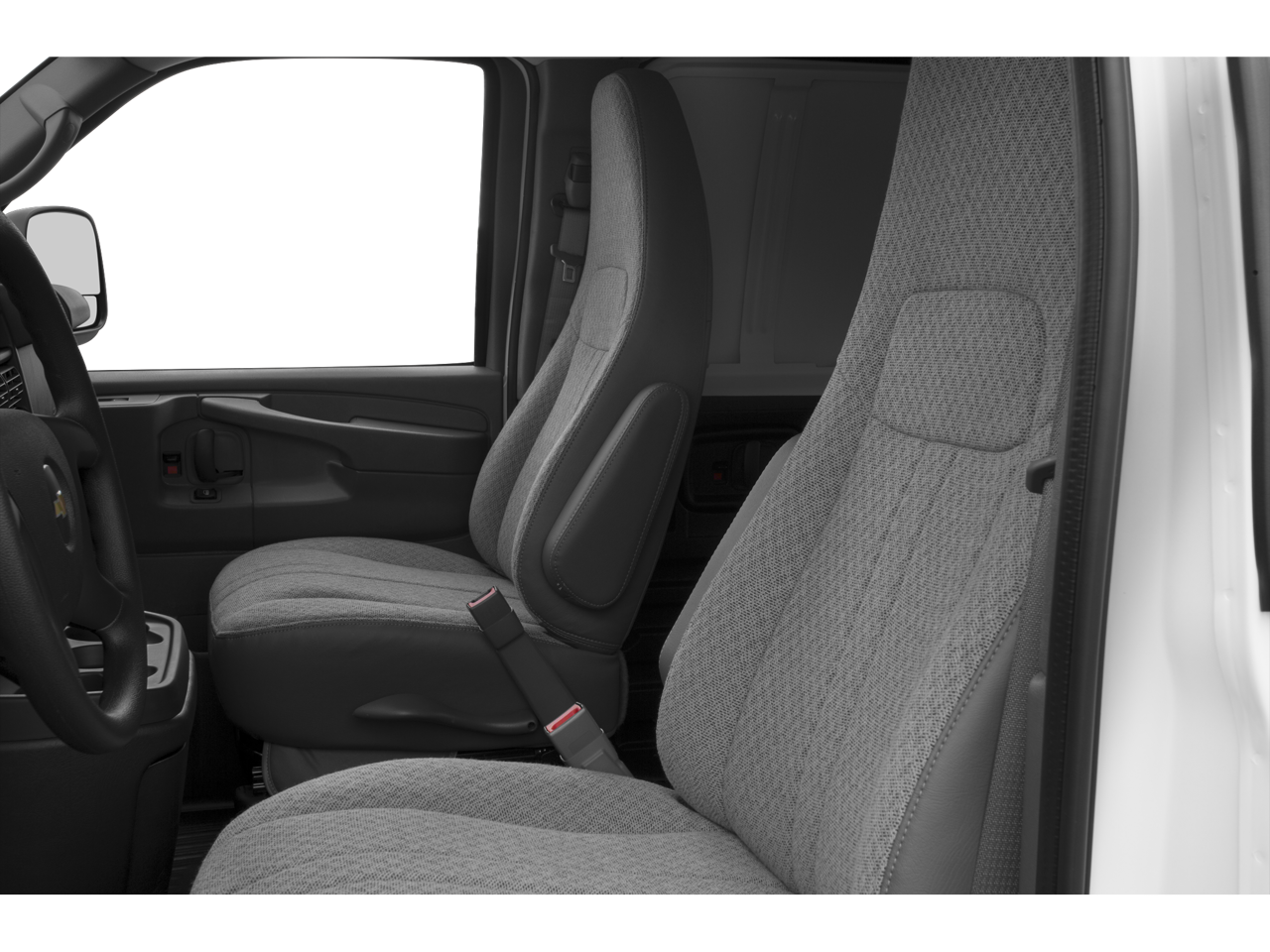

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)

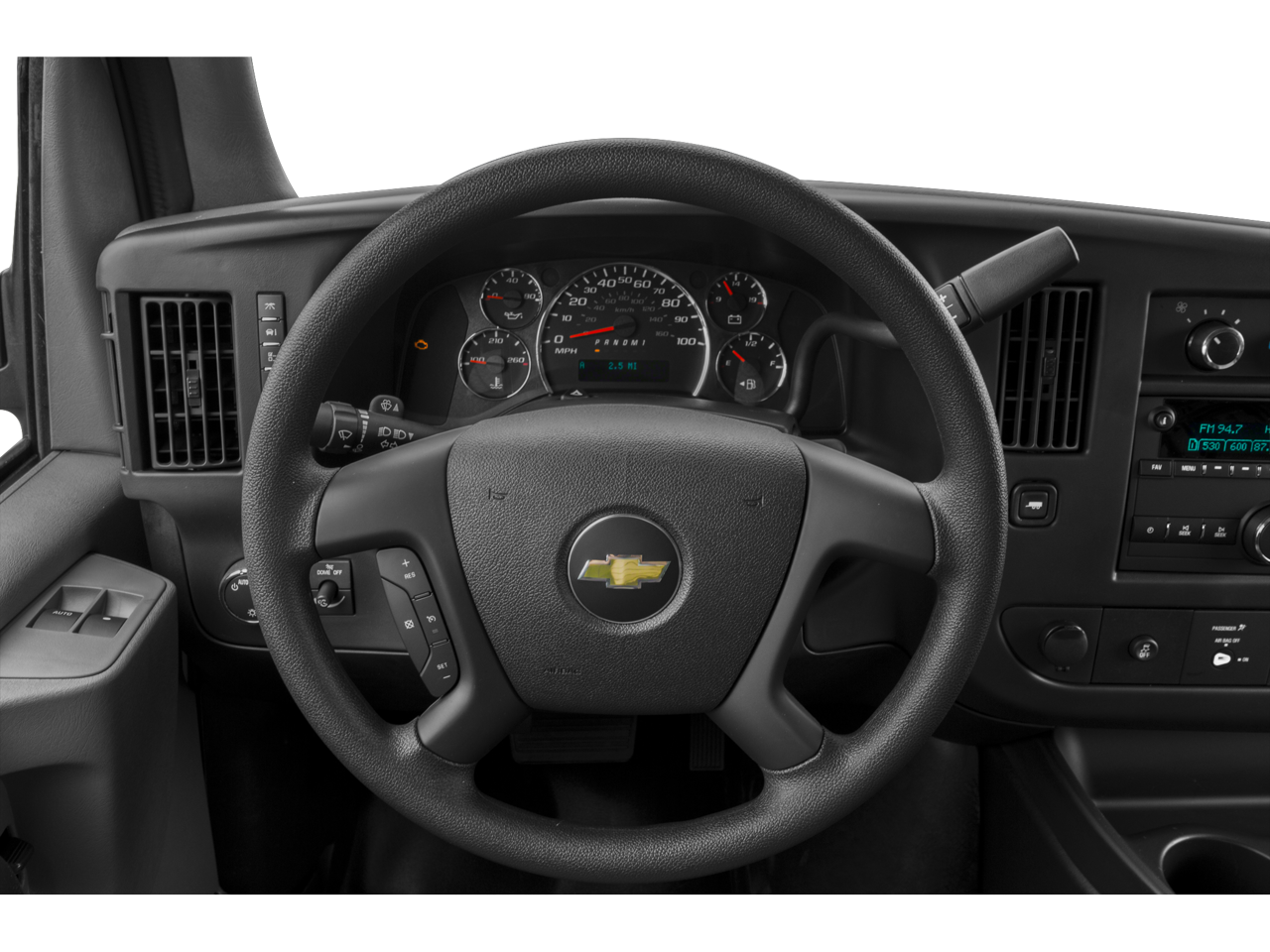

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Power outlet, 120-volt
• Trim panels, hinged rear side doors and hinged rear doors
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches (When (UF2) Express Access Enhanced Lighting Package is ordered, 2 LED lights are replaced with fluorescent lights.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

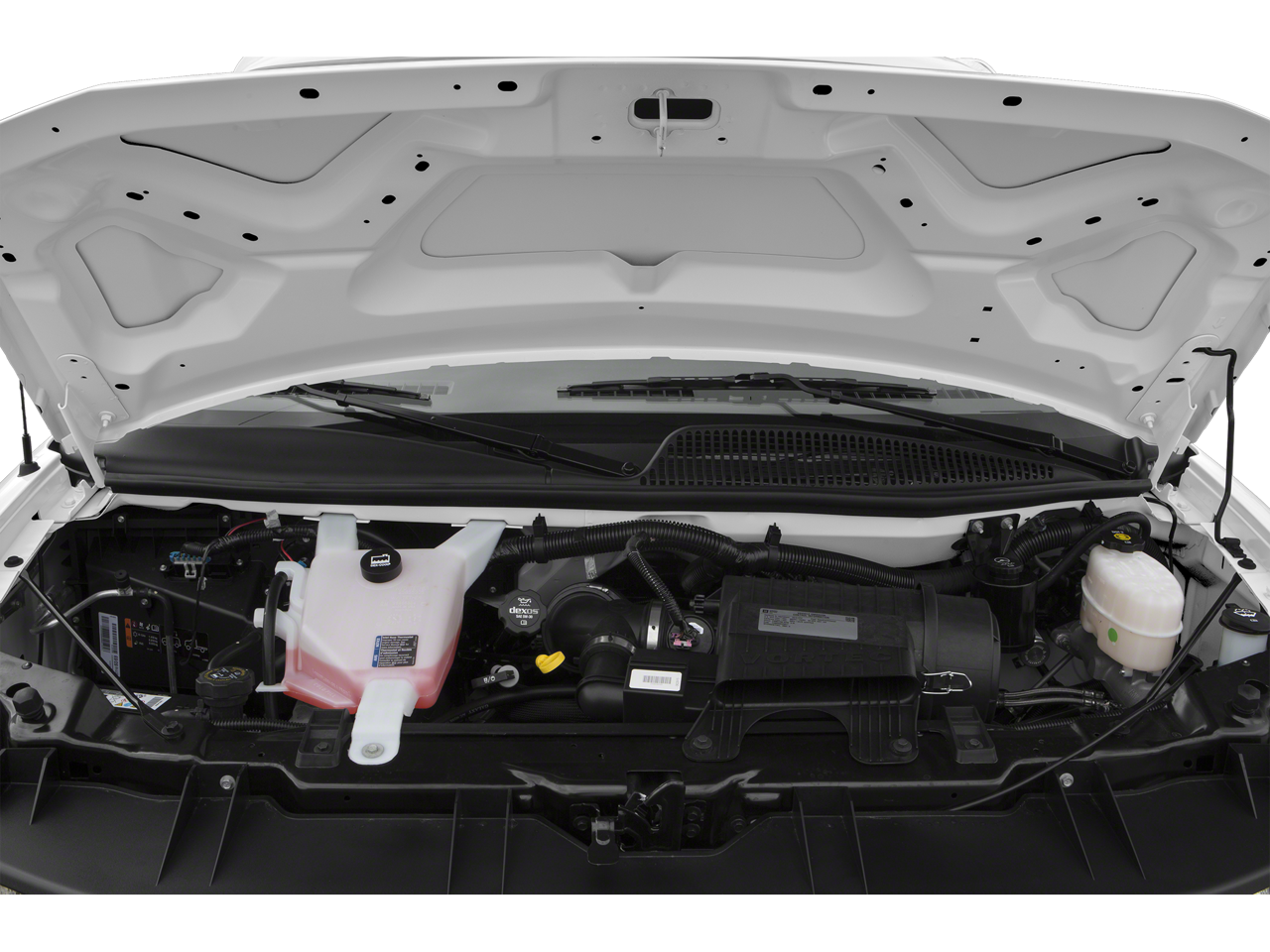

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

• Preferred Equipment Group 1
• 3.42 Rear Axle Ratio
• Heavy-Duty Rear Locking Differential
• 16 inch x 6.5 inch Steel Wheels
• Reclining High-Back Front Bucket Seats
• Reclining Front High-Back Bucket Seats
• Vinyl Seat Trim
• AM/FM Stereo w/CD/MP3 Player

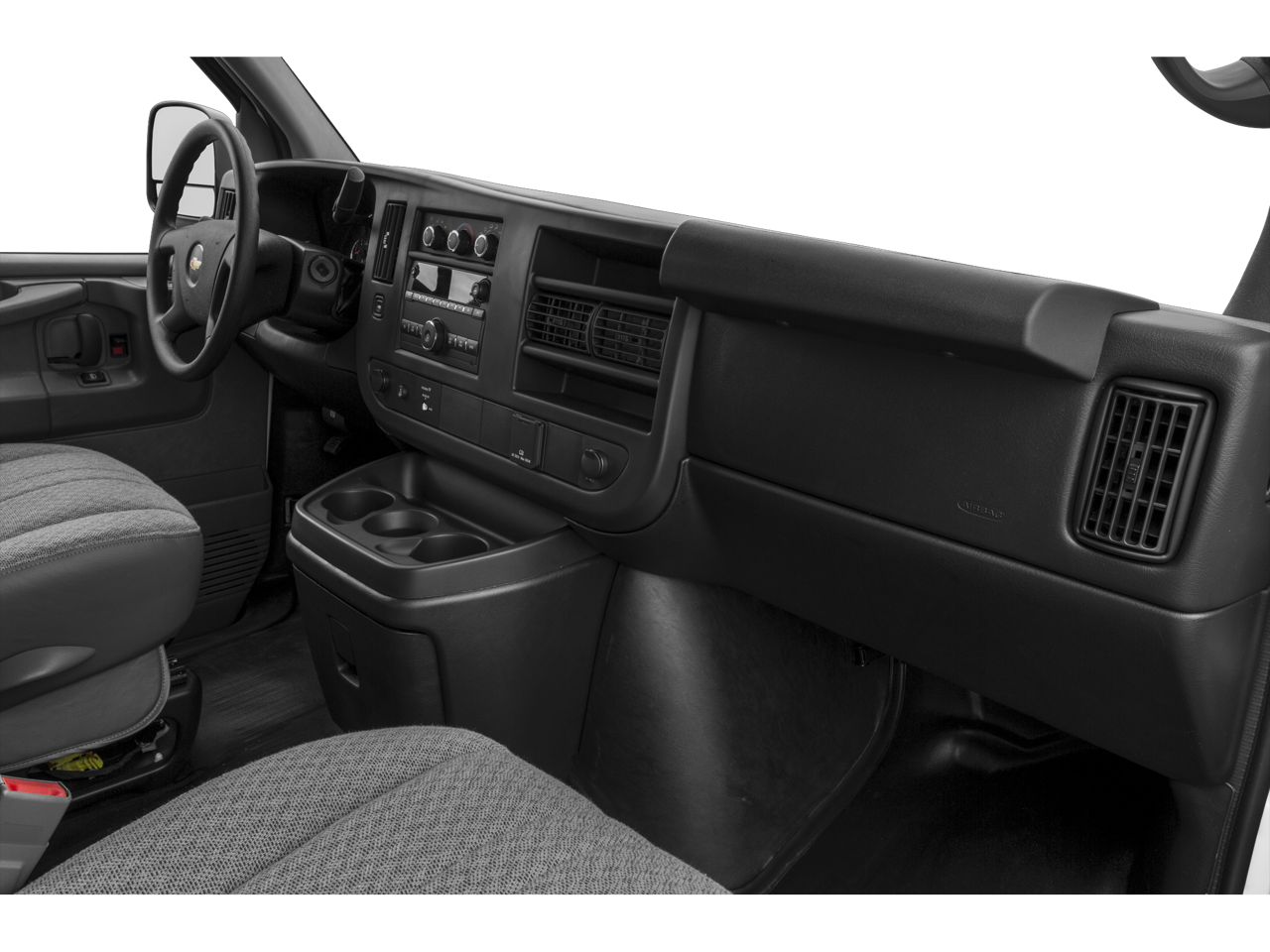

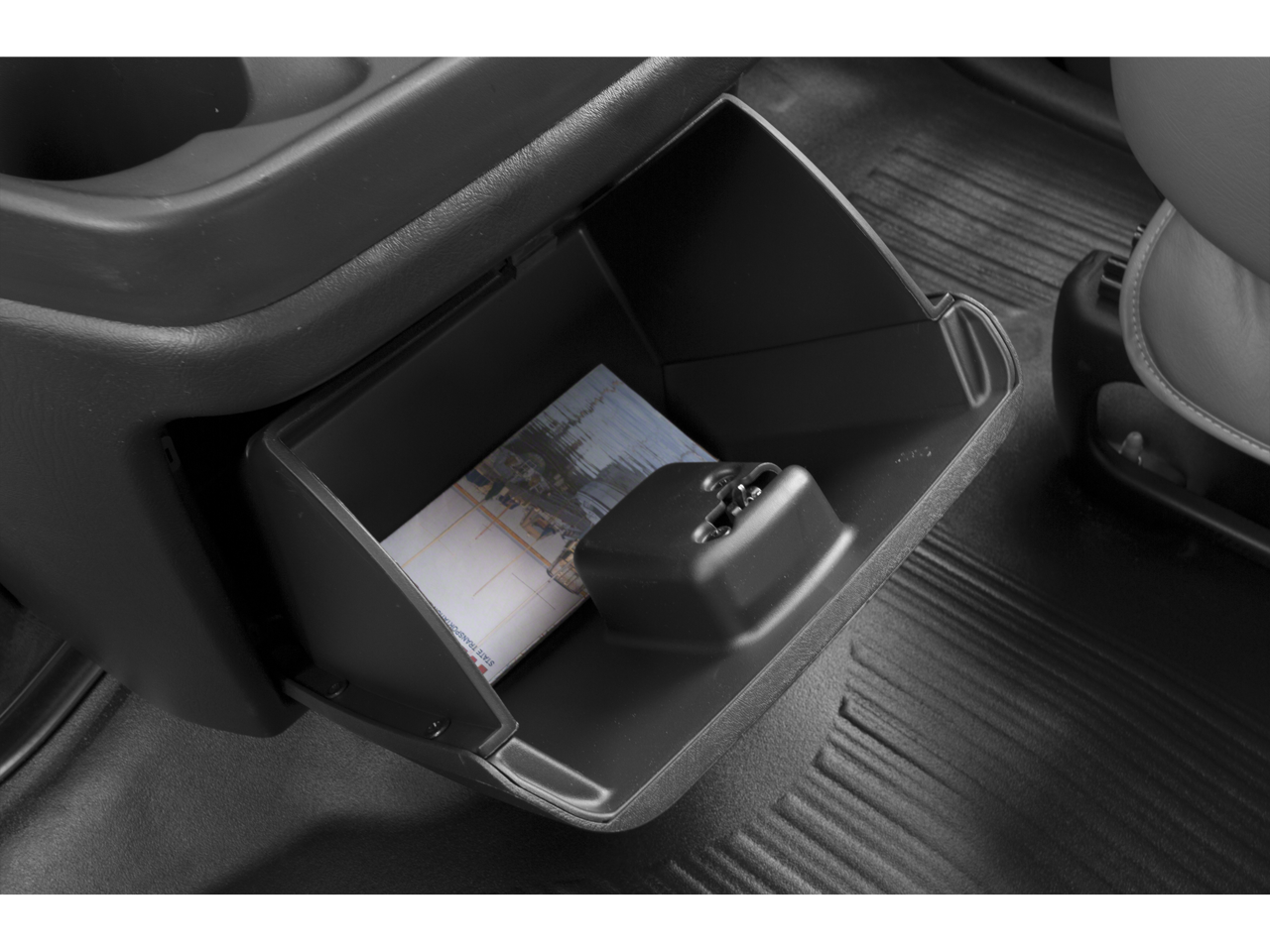

• Engine Cover Console w/Swing-Out Storage Bin
• Tilt & Cruise Convenience Package
• Inside Rear-View Manual Day/Night Mirror
• OnStar 6 Months Directions & Connections Plan
• Bluetooth® For Phone
• Remote Keyless Entry
• Rear Vision Camera
• Leather-Wrapped Steering Wheel
• 145 Amp Alternator
• 770 CCA Heavy-Duty Maintenance-Free Battery
• Heavy-Duty Trailering Equipment
• 7-Pin Sealed Connector Trailer Wiring
• Power Door Locks w/Lock-Out Protection
• Cruise Control
• Tilt Steering Wheel
• SiriusXM Satellite Radio
• USB Port Audio System Feature
• External Transmission Oil Cooler
• Steering Wheel Mounted Audio Controls
• Convenience Package
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Power windows
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)
• REAR AXLE 3.42 RATIO
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 7-pin sealed connector (Includes (UY7) 7-lead trailer wiring harness.
• CRUISE CONTROL
• SUMMIT WHITE
• SIRIUSXM SATELLITE RADIO is standard on nearly all 2015 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus you can listen to SiriusXM Internet Radio everywhere on your computer smartphone or tablet. Welcome to the world of SiriusXM.
• ONSTAR 6 MONTHS OF DIRECTIONS AND CONNECTIONS PLAN Directions and Connections plan for 6 months including Automatic Crash Response Stolen Vehicle Assistance Roadside Assistance and Turn-by-Turn Navigation
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• ENGINE VORTEC 4.8L V8 SFI (285 hp [212.5 kW] @ 5400 rpm 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.
• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• ALTERNATOR 145 AMPS
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• REAR VISION CAMERA display integrated into rearview mirror (Integrated into navigation screen when (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation is ordered.)
• Bluetooth® FOR PHONE PERSONAL CELL PHONE CONNECTIVITY TO VEHICLE AUDIO SYSTEM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• STEERING WHEEL LEATHER-WRAPPED
• AUDIO SYSTEM FEATURE USB PORT
• BATTERY HEAVY-DUTY 770 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power

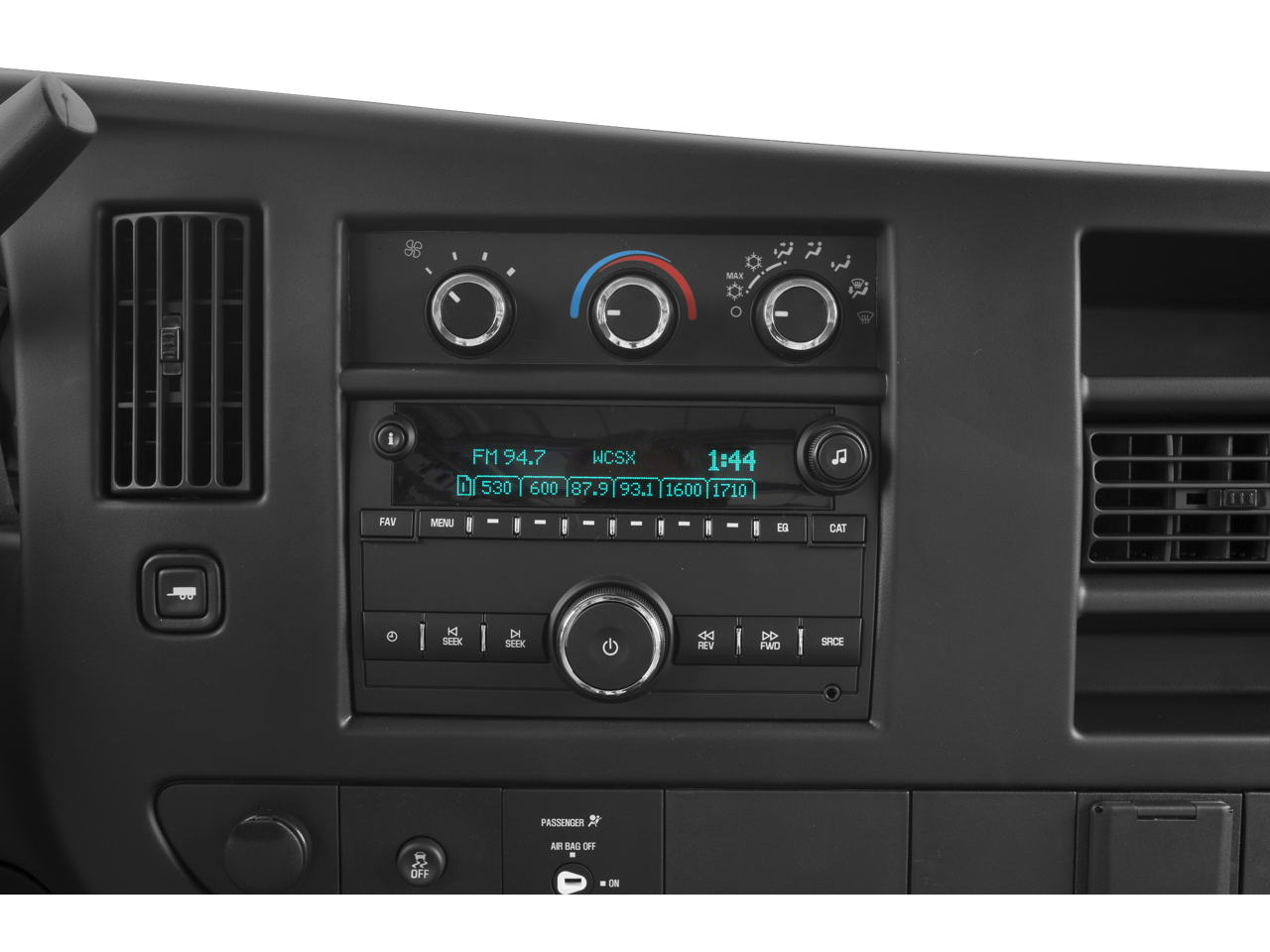

• AUDIO SYSTEM AM/FM STEREO WITH CD/MP3 PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) auxiliary jacks and 2 front door speakers
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO KNAPHEIDE TRUCK EQUIPMENT ST. PETERS MO THEN BACK TO WENTZVILLE FOR FINAL SHIPMENT
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TRAILER WIRING 7-PIN SEALED CONNECTOR
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL

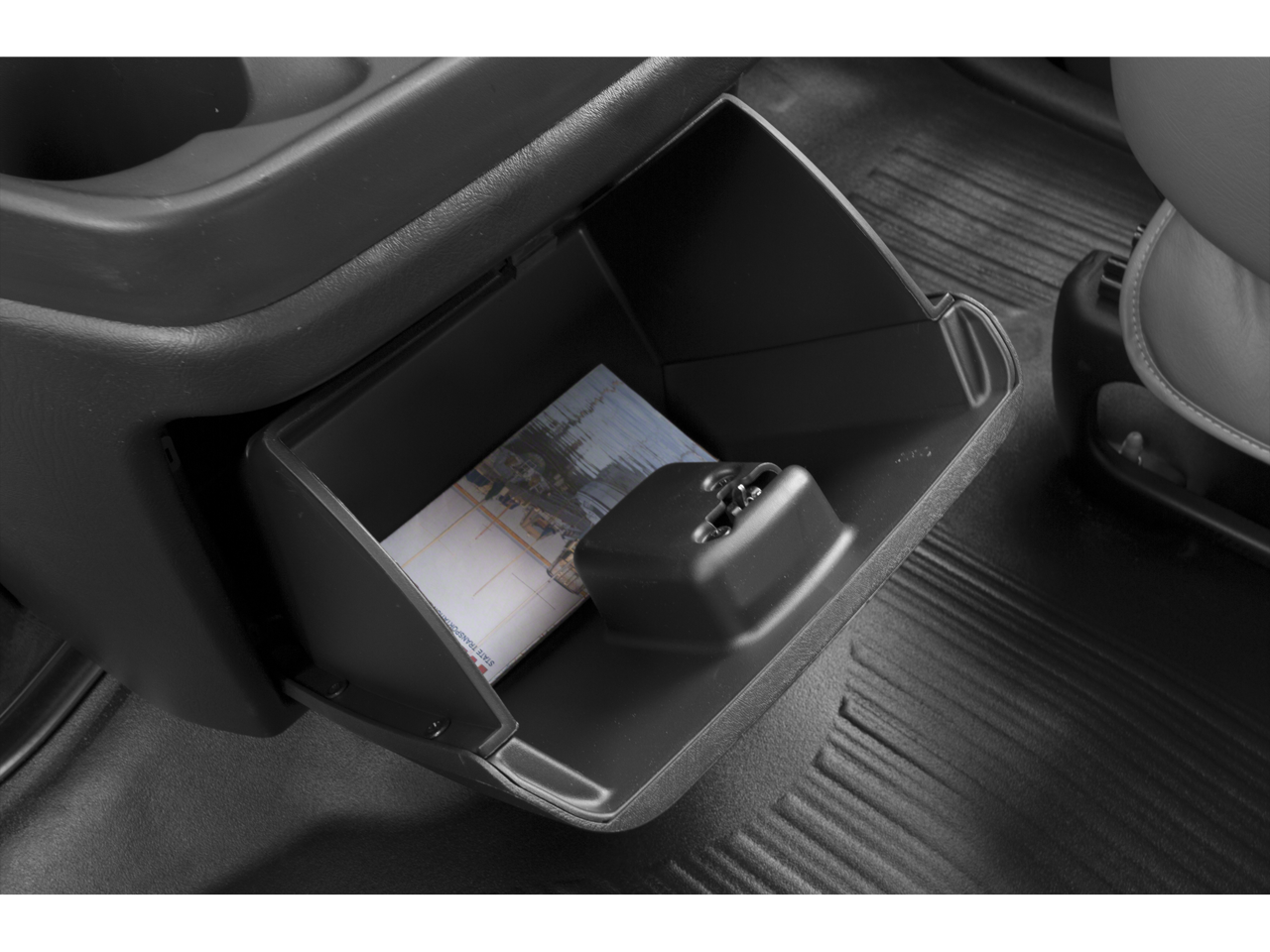

• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Conventional Spare Tire
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Immobilizer
• Power Outlet
• Power Outlet
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 3026
• Curb Weight - Rear (lbs): 2362
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 84.60
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.30
• Step Up Height - Side (in): 20.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 124.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 52.90
• Cargo Volume (ft³): 239.7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
